Lightweight & feature packed

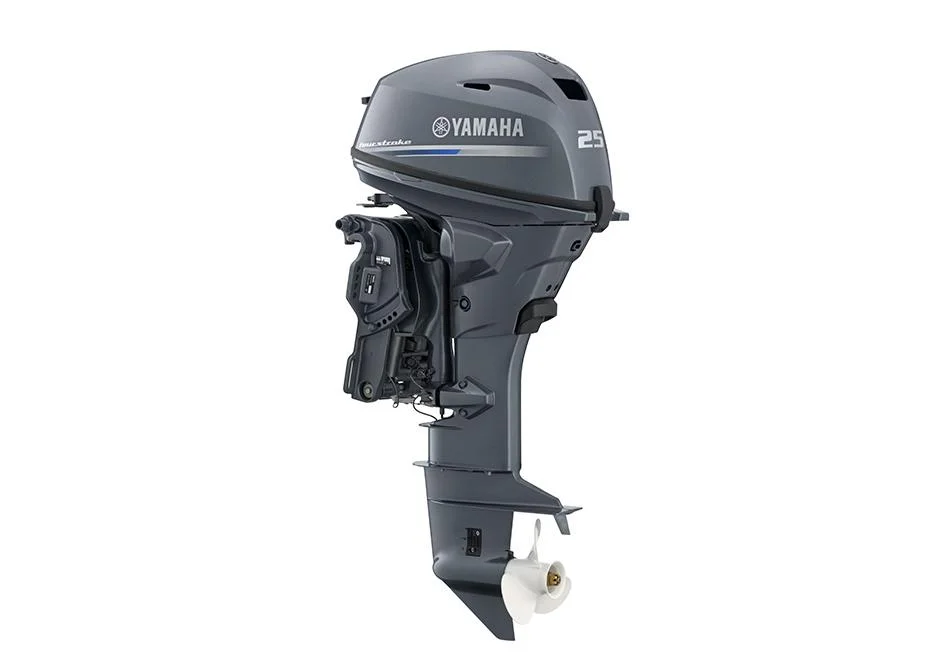

The exciting new F25 delivers the weight and performance you would expect from a two-stroke, with all of the advantages that comes with Yamaha’s industry-leading four-stroke technologies.
This new generation outboard is not only an improvement on the four-stroke model it replaces, but also exceeds the all-round capabilities of Yamaha’s legendry 25N two-stroke outboard.
For the first-time in Yamaha’s four-stroke history, the new F25 comes with battery-less fuel injection – delivering easier starts, better fuel economy and an improved overall operating performance.
Through smart design, the new compact F25 is now the lightest 25 horsepower outboard in its class - 20Kg lighter than its four-stroke predecessor and less than 10 kg heavier than Yamaha’s 25N two-stroke.
This engine comes packed with additional features including Yamaha’s variable trolling switch which allows anglers to precisely set the engine speed for optimum lure presentation.
The F25C is not only compatible with Yamaha’s range of command link gauges, but can also be connected to third party multi-function displays, GPS and fish finders.
Another great feature is the ability to fit Yamaha’s exclusive YCOP engine immobiliser, delivering peace of mind by preventing unauthorised engine start-ups
The new F25 can be configured with manual or electric start, tiller handle or mechanical steering, and manual or power, trim and tilt options.
Engine Type: 4-Stroke, SOHC In-line 2
Displacement: 432 cc
Bore x Stroke: 65 x 65.1 mm
Recommended Max RPM: 5000-6000
Lubrication System: Wet sump
Fuel Management: EFI
Starter System: Manual (SMHC, LMHC, SWC), Electric (SWC, LC)
Alternator Output: 12V - 16A
Operation Method: Tiller handle (SMHC, LMHC), Remote control (SWC, LC*) *Multifunction Tiller Handle Optional
Trim & Tilt Method: Manual tilt (SMHC, LMHC, SWC), Power trim & tilt (LC)
Digital Gauges: Opitonal
Digital Network Gauges with Fuel Management: Optional
Gear Ratio: 2.08 : 1 (27/13)
OEDA Emission Rating: 3/4
F25SMHC : 424 mm (16.7 in)
F25LMHC : 551 mm (21.7 in)
F25SWC : 424 mm (16.7 in)
F25LC : 551 mm (21.7 in)
F25SMHC : 57 kg
F25LMHC : 59 kg
F25SWC : 57 kg
F25LC : 64 kg
