Compact, light weight and powerful.

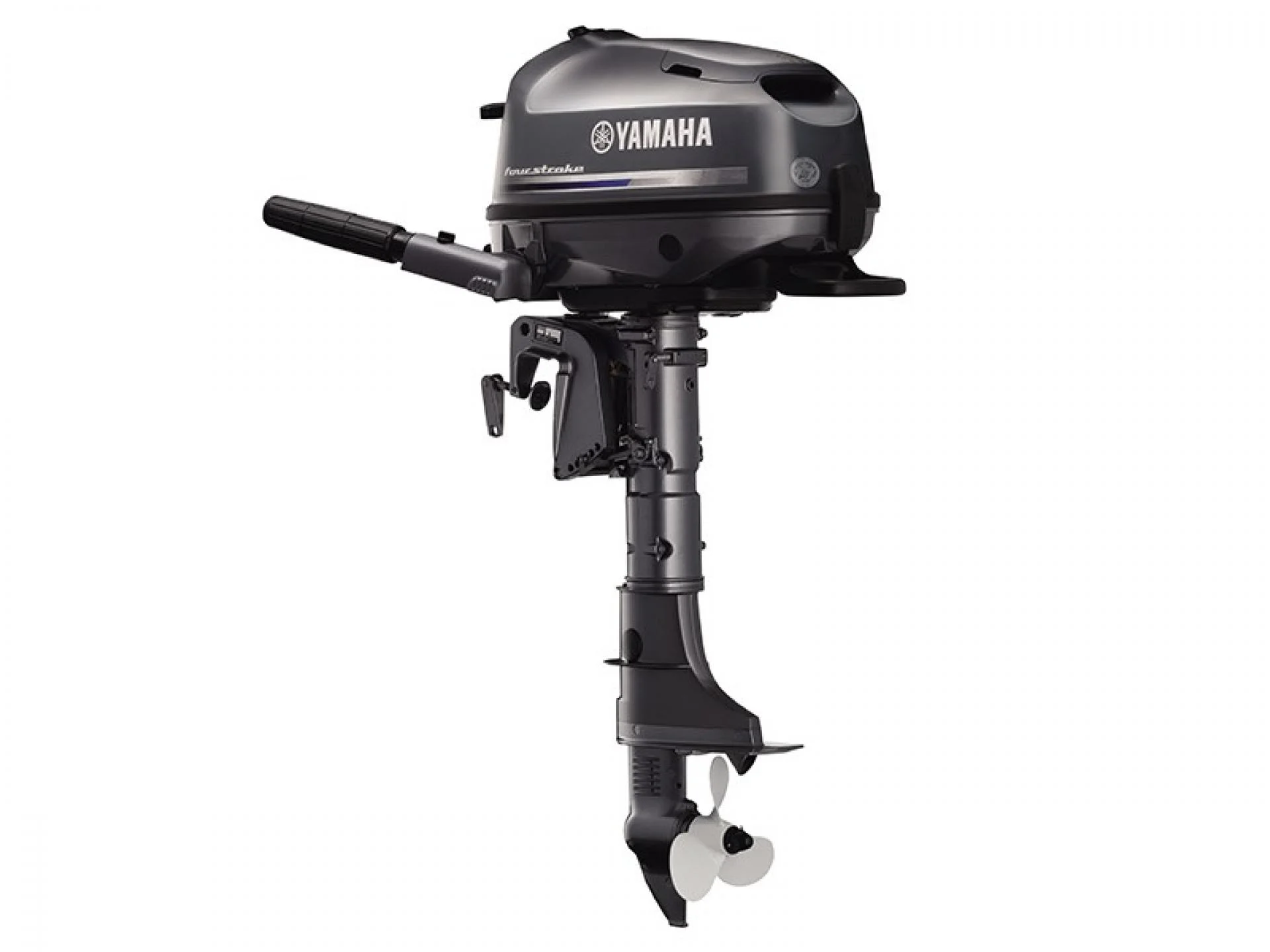

Lightweight, compact and economical. Yamaha’s single cylinder portable, the F5 has been designed to be ultra-easy to use and feature a specially developed four stroke, OHV design delivering excellent combustion efficiency as well as economical and smooth running.
For easy pull starting, the F5 feature an auto decompression device fitted to the camshaft. This system releases pressure in the cylinder when the manual pull start is engaged allowing the user a much lighter pull starting experience.
For convenient transport and mounting, the F5 is fitted with an economically designed grasp on the front of the motor and a large carry handle on the rear.
The F5 also feature Yamaha’s unique oil leak prevention system, which allows you to store or transport the engine on either side or its front without leaking engine oil.
This means worry free transport in a car boot and hassle free storage. Designed to be versatile, Yamaha F5 feature a five step adjustable trim allowing the user to adjust the operating angle of the engine according to boat load or water conditions.
The three step Shallow Water Drive feature offers added manoeuvrability in shallow conditions. In-built fuel tanks on this engine means it can go with you on any adventure. For extra range the F5 also have the ability to connect to an external fuel tank.
Engine Type: OHV, 1-cylinder
Displacement: 139 cc
Bore x Stroke: 62 x 46 mm
Recommended Max RPM: 4500-5500
Lubrication System: Wet sump
Fuel Management: Carb
Starter System: Manual Choke
Alternator Output: 12V-6Amp with Rectifier Regulator (optional)
Operation Method: Tiller handle
Trim & Tilt Method: Manual tilt
Fuel Tank Capacity: 1.1 L
Gear Ratio: 2.08 : 1
F5AMHS : 440 mm (17.3 in)
F5AMHL : 568 mm (22.4 in)
F5AMHS : 27 kg
F5AMHL : 28 kg
