Jabscoe Hot Shot HD4 Washdown Kit

The Jabsco Hotshot HD4 Washdown Kit now comes in a more robust, compact and improved design. Continuing Jabsco’s dedication to producing top-quality products, this ruggedly, robust wash-down kit features a heavy-duty motor that’s protected by an automatic thermal overload cut-out for enhanced longevity. The multi-diaphragm design self-primes to 2.4m vertical lift and can even run dry without damage.

The included Jabsco Pumpguard Strainer prevents unnecessary pump breakdowns caused by particles in the water, while the trigger nozzle offers an easier and more efficient cleaning performance. This wash-down kit is IPX6 rated, meaning it can withstand rough operations that usually come with outdoor use. Want an easier way to clean your boat, deck or RV? The Jabsco Hotshot HD4 Washdown Kit will not disappoint.

Jabsco Hotshot HD4 Washdown Kit Features:

• Efficient, high-flow, self-priming pump

• Great for boats, decks or RVs

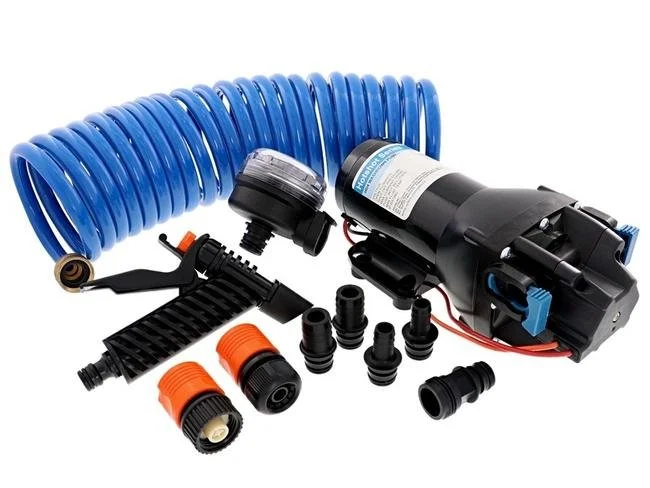

• Includes pumpguard strainer, trigger nozzle, port fittings and 25ft (7.6m) hose coil

• Multi-diaphragm design self primes to 2.4m vertical lift

• Can run dry without damage

• Heavy-duty motor protected by automatic thermal overload cut-out to prevent overheating

• Cast aluminium housing

• Integrated, sealed pressure switch

• IPX6 rated

• Supplied with snap-in ports for hose 1/2in (13mm) and 3/4in (19mm) and 3/4in US garden hose thread (1 pc)

Jabsco Hotshot HD4 Washdown Kit Specifications:

General

• Part number: Q401J-118N-4A

• Application: Marine washdown

• Ambient temp range: 32 - 140F (0 - 60C)

• IP rating: IPX6

• Packed dimensions: 445 x 305 x 140mm

• Weight: 2.5kg

Materials

• Upper housing: Fibre reinforced polypropylene

• Lower housing: Cast aluminium

• Check valve retainer: Polypropylene

• Diaphragm: TPV

• Check valves: EPDM

• Switch diaphragm: EPDM

• Byprass diaphragm: N/A

• PH seals: EPDM

• PH fasteners: Stainless steel

• Baseplate: Plastic with rubber feet

• Motor casing: Cast aluminium, coated steel

Hydraulic Performance

• Open flowrate: 15.1 LPM / 4 GPM

• Pressure switch cut-off: 60 PSI (4.1 BAR)

• Max operating pressure: 60 PSI (4.1 BAR)

• Max inlet pressure: 30 PSI (2.1 BAR)

• Internal bypass: None

• Fluid temperature range: 32 - 140F (0 - 60C)

• Self-Priming capability: Up to 8ft (2.4m) dry prime

• Run-dry capable: Yes

Electrical Performance

• Nominal voltage: 12VDC

• Voltage range: 9 - 13.6VDC

• Max current draw: 11A @ 60 PSI (4.1 BAR)

• Fuse size: 20A (not included)

• Duty cycle: Intermittent

• Leads: 12in (305mm), 14 AWG (2.5mm^2)

• Wire connection: Stripped wire
